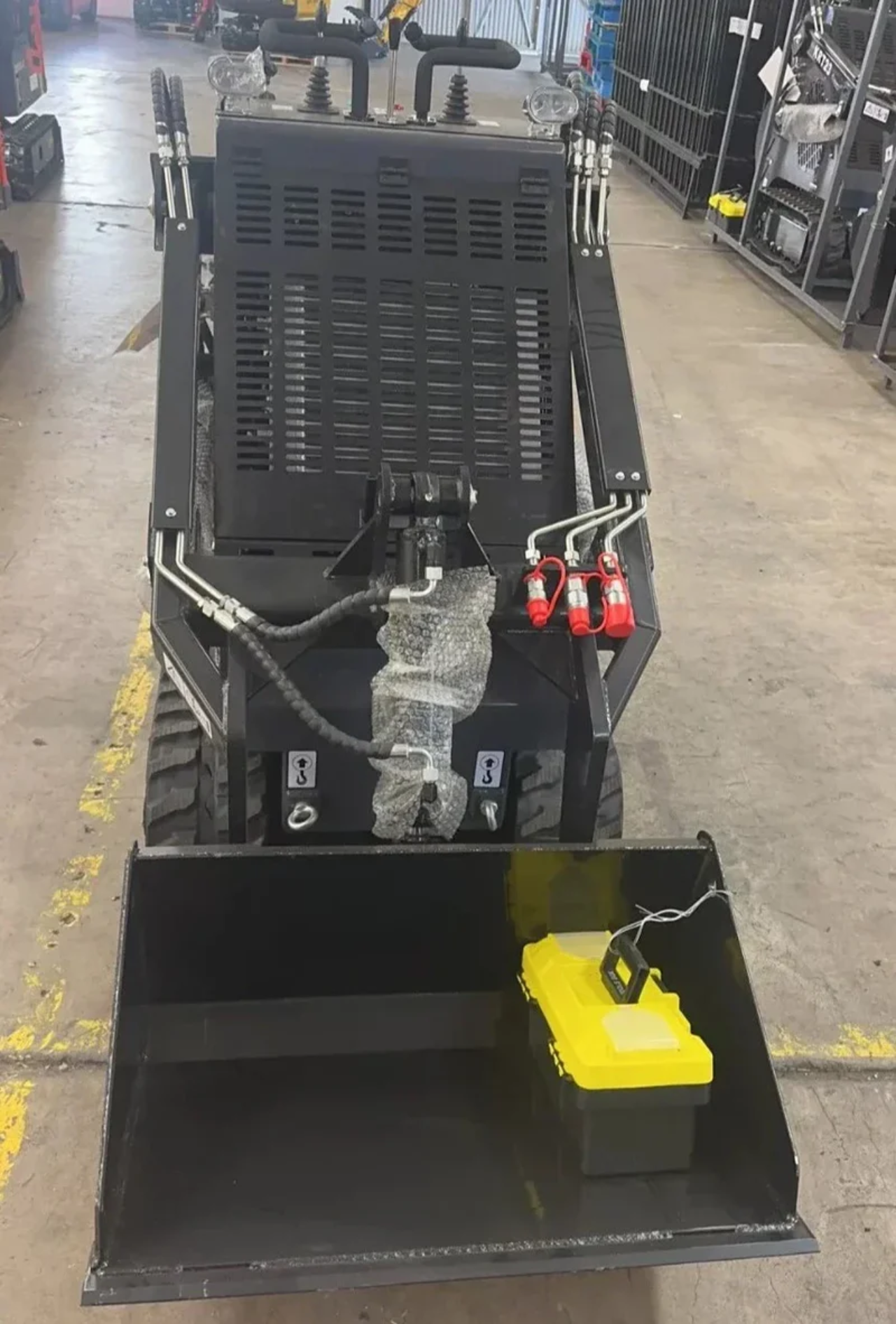

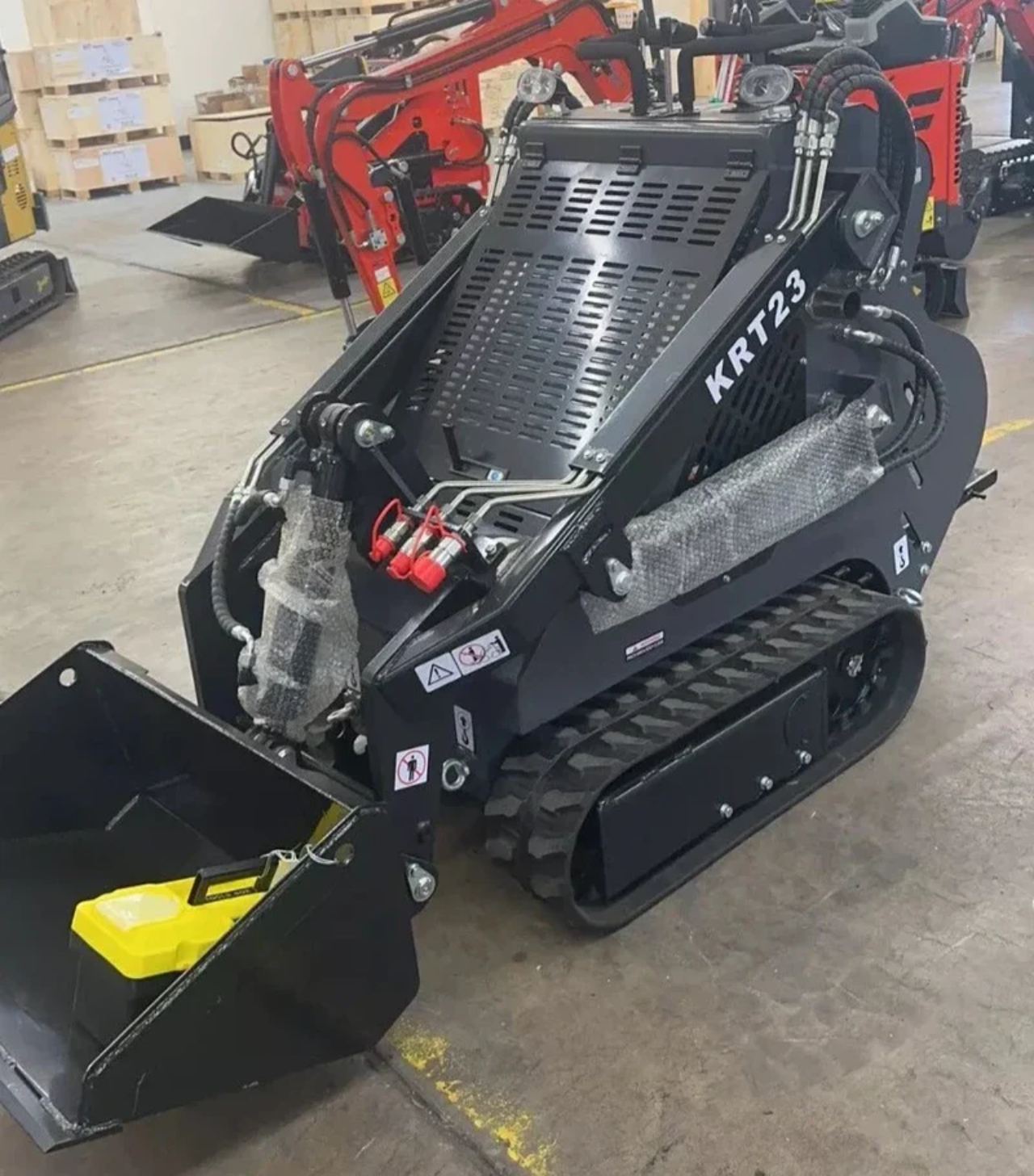

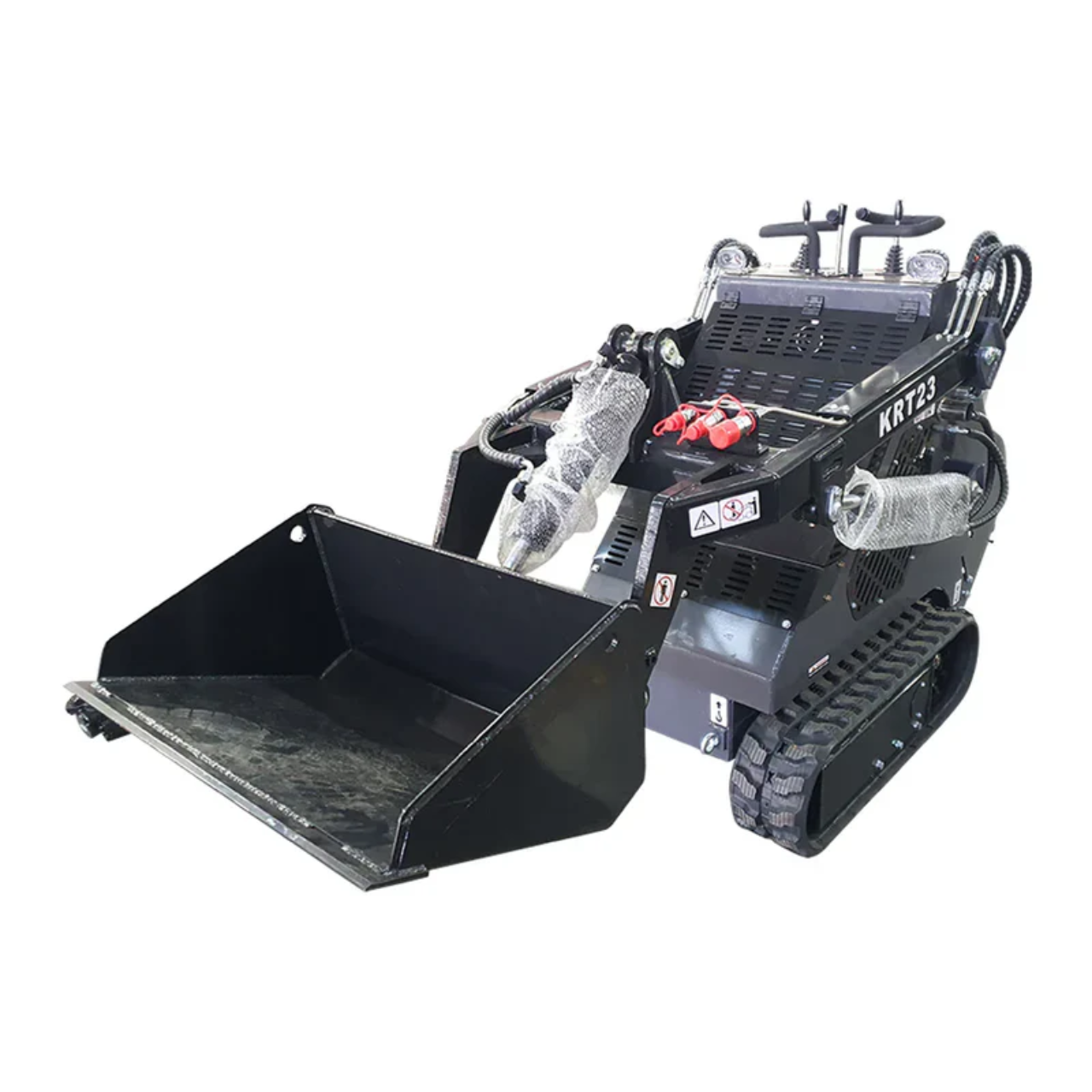

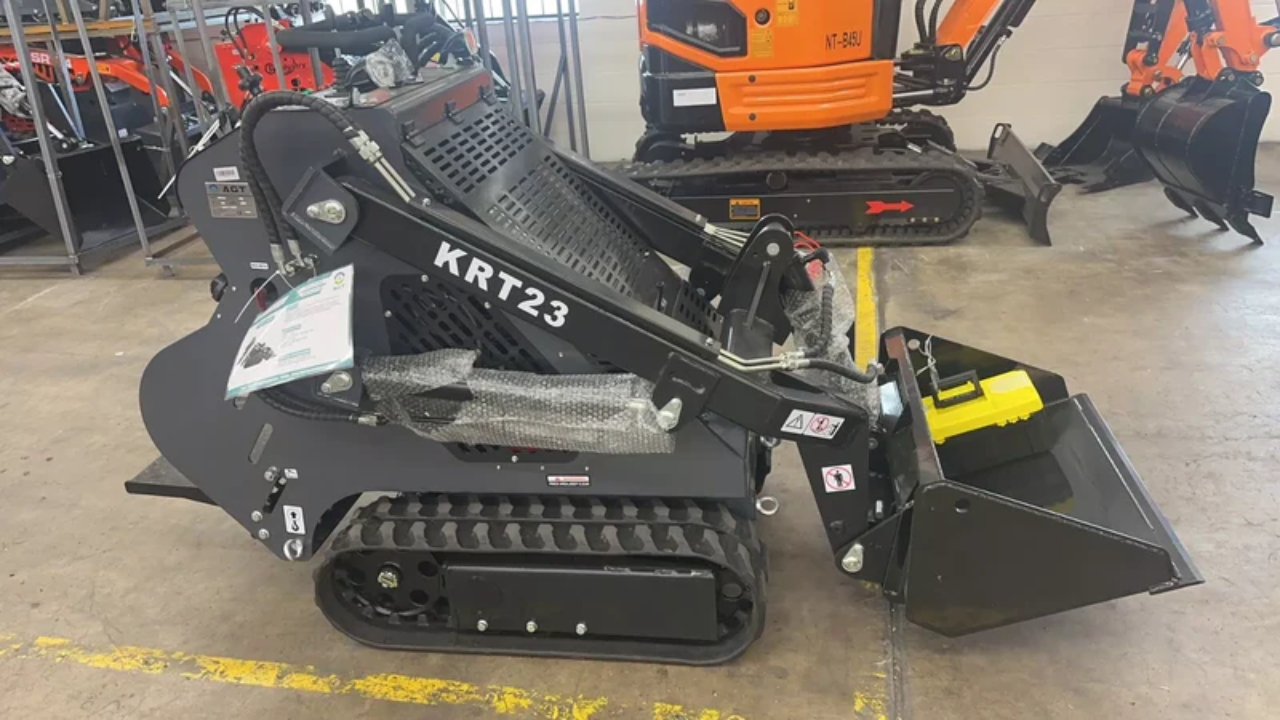

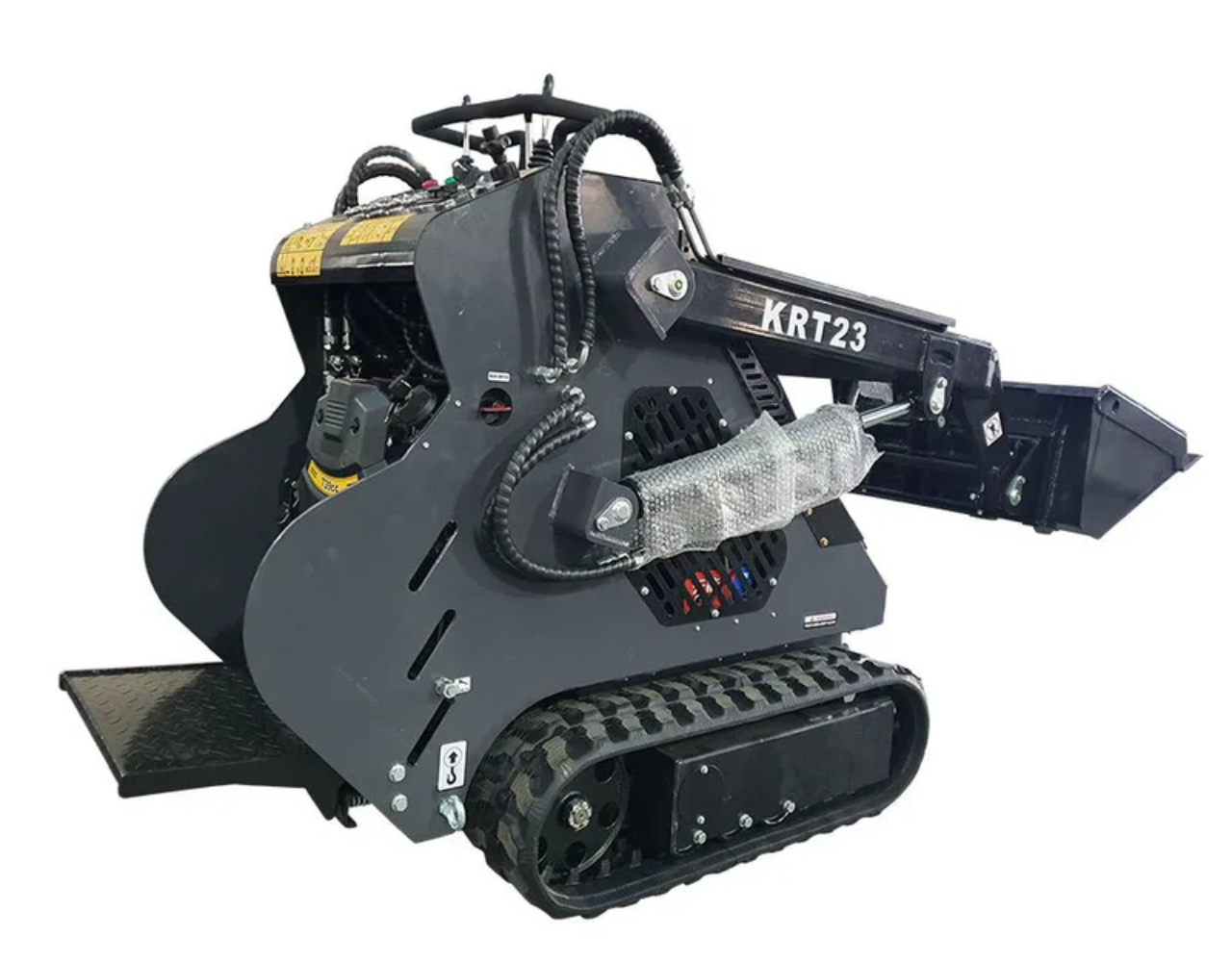

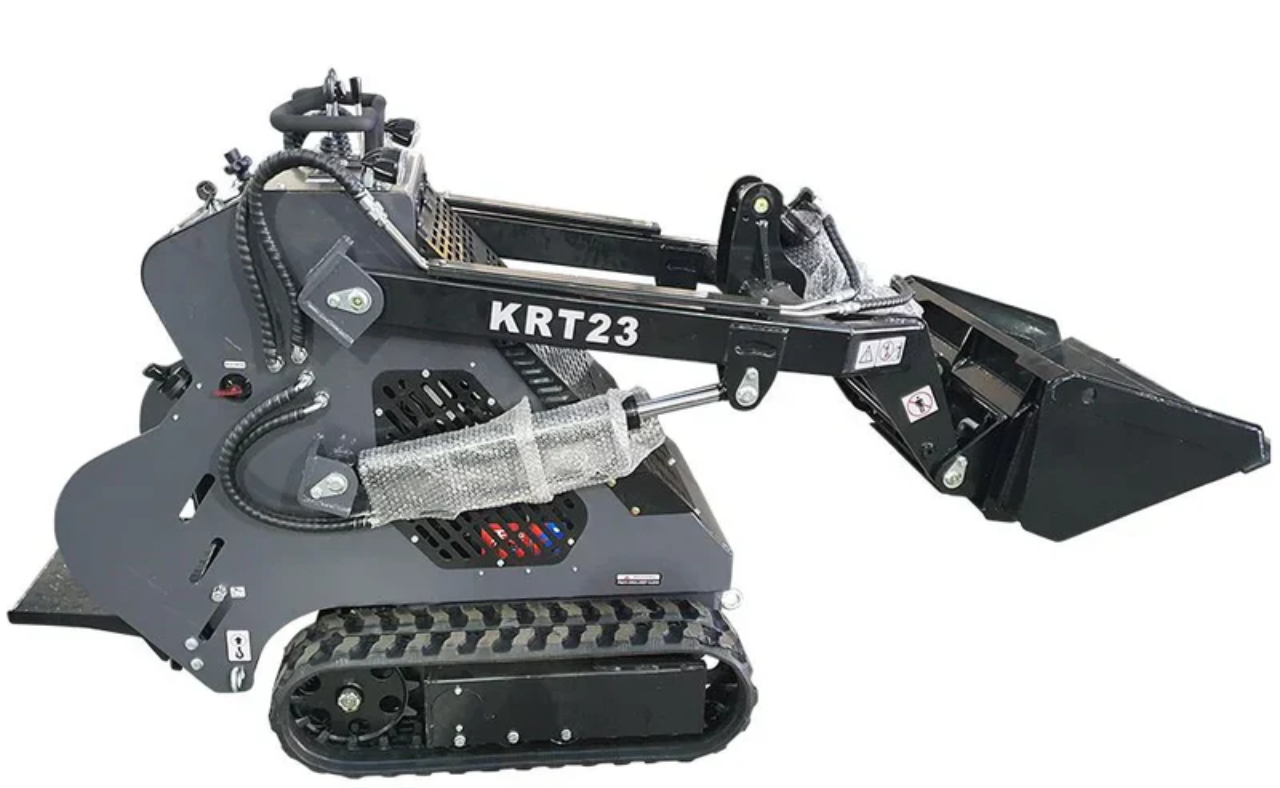

The CFG-KRT23 by CFG Industrial is a tracked industrial machine with a reliable R740 gasoline engine producing 23 HP and a 25-liter fuel tank.
Technical Data:
- Engine: R740
- Maximum load: 441 lb
- Horse Power: 23
- Equipped with electric start
DIMENSION
- Operating Weight: 0.9 Ton (1,984 lb)
- Overall Length: 2,160 mm (85 in)
- Overall Width: 889 mm (35 in)
- Overall Height: 1,270 mm (50 in)
- Bucket Width: 890 mm (35 in)
- Bucket Capacity: 0.12 m³ (0.16 yd³)
- Tracks Size: 200*72*32 (W*P*L)
WORKING RANGE
- Max Working Height: 2,450 mm (96.5 in)
- Max Unloading Height: 1,428 mm (56 in)
- Max Lifting Force: 200 kg (440 lb)
- Travel Speed: 5.5 km/h (3.4 mph)

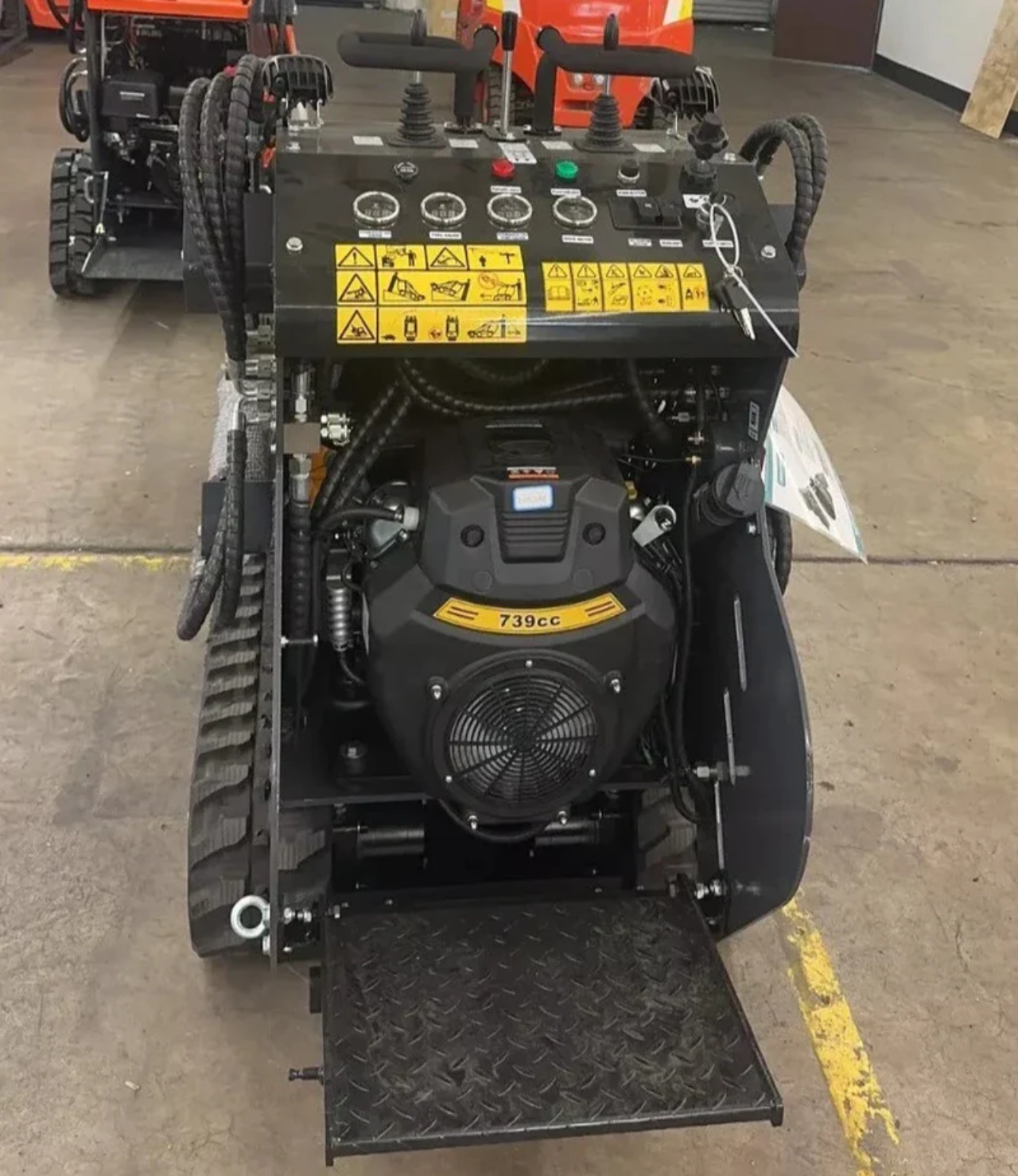

ENGINE
- Brand / Model: Rato R740D
- Fuel Type: Gasoline
- Max Power: 17 kW (23 HP)
- Displacement: 740 cc
- Fuel Tank: 25L (6.6 gal)
- Hydraulic Flow Rate: 43.2 L/min (11.4 GPM)
- Hydraulic Pressure: 16 MPa (2.320 PSI)
- Hydraulic Tank Capacity: 25L (6.6 gal)
