DIMENSION
- Operating Weight: 0.95 Ton (1,900 lb)
- Overall Length: 2,432 mm (96 in)
- Overall Width: 904 mm (35.5 in)
- Overall Height: 1,364 mm (54 in)
- Bucket Width: 800 mm (31.5 in)
- Bucket Capacity: 0.12 m³ (0.15 yd³)
- Tracks Size: 180*72*41 (W*P*L)
WORKING RANGE
- Max Working Height: 2,285 mm (90 in)
- Max Unloading Height: 1,612 mm (63.5 in)
- Max Lifting Force: 220 kg (485 lb)
- Travel Speed: 4 km/h (2.5 mph)

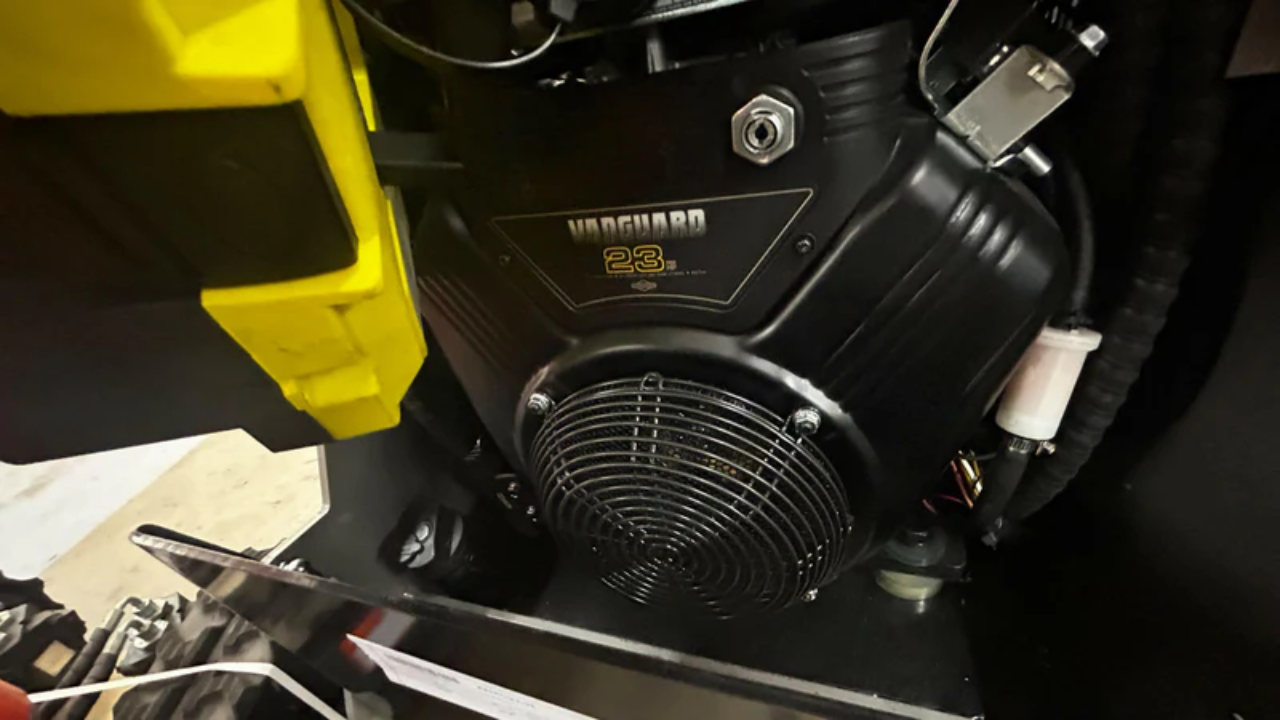

ENGINE
- Brand / Model: B&S XR 23HP
- Fuel Type: Gasoline
- Max Power: 17.2 kW (23 HP)
- Displacement: 740 cc
- Fuel Tank: 25 L (6.6 gal)
- Hydraulic Flow Rate: 64.8 L/min (17 GPM)
- Hydraulic Pressure: 22 MPa (3,190 PSI)
- Hydraulic Tank Capacity: 33 L (8.7 gal)
