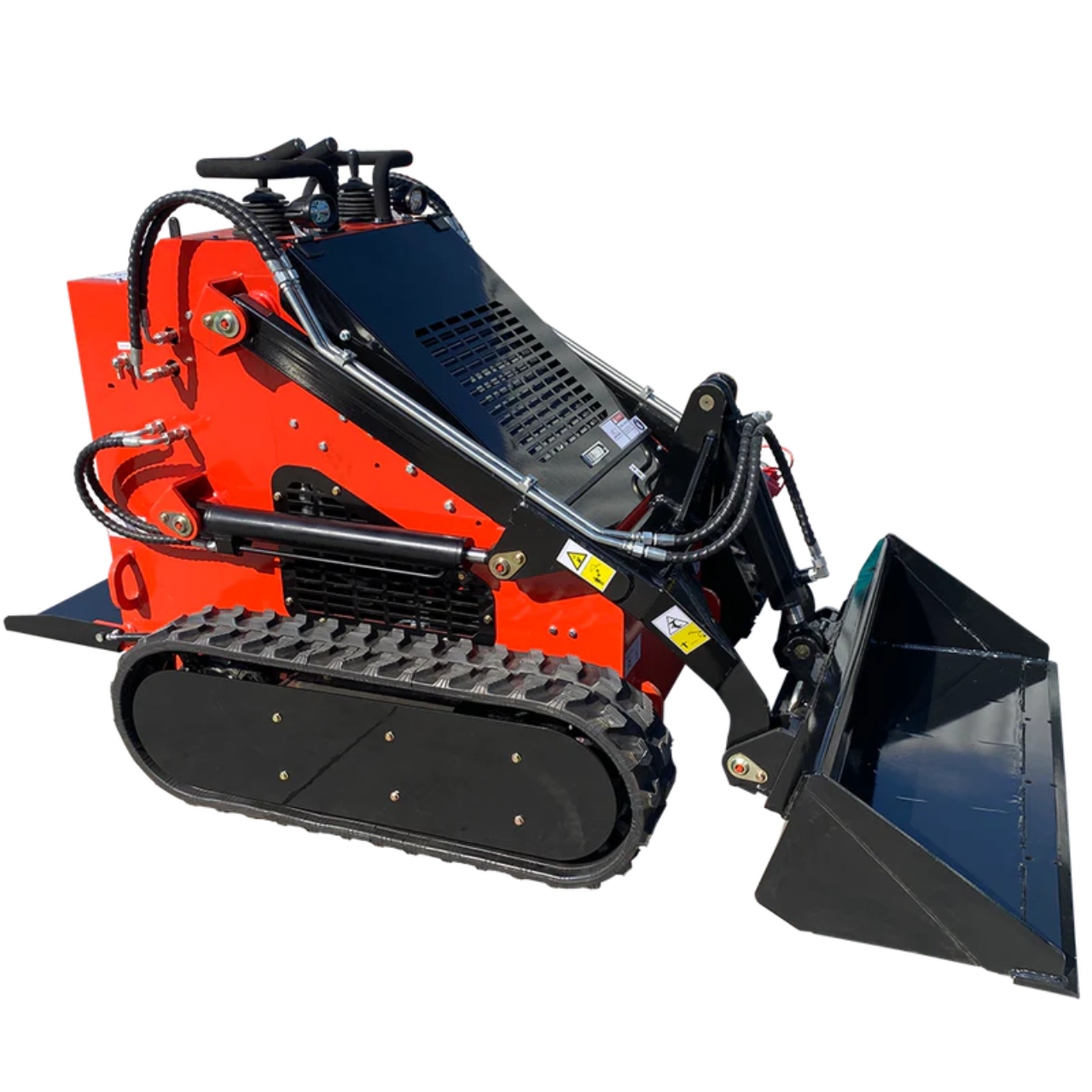

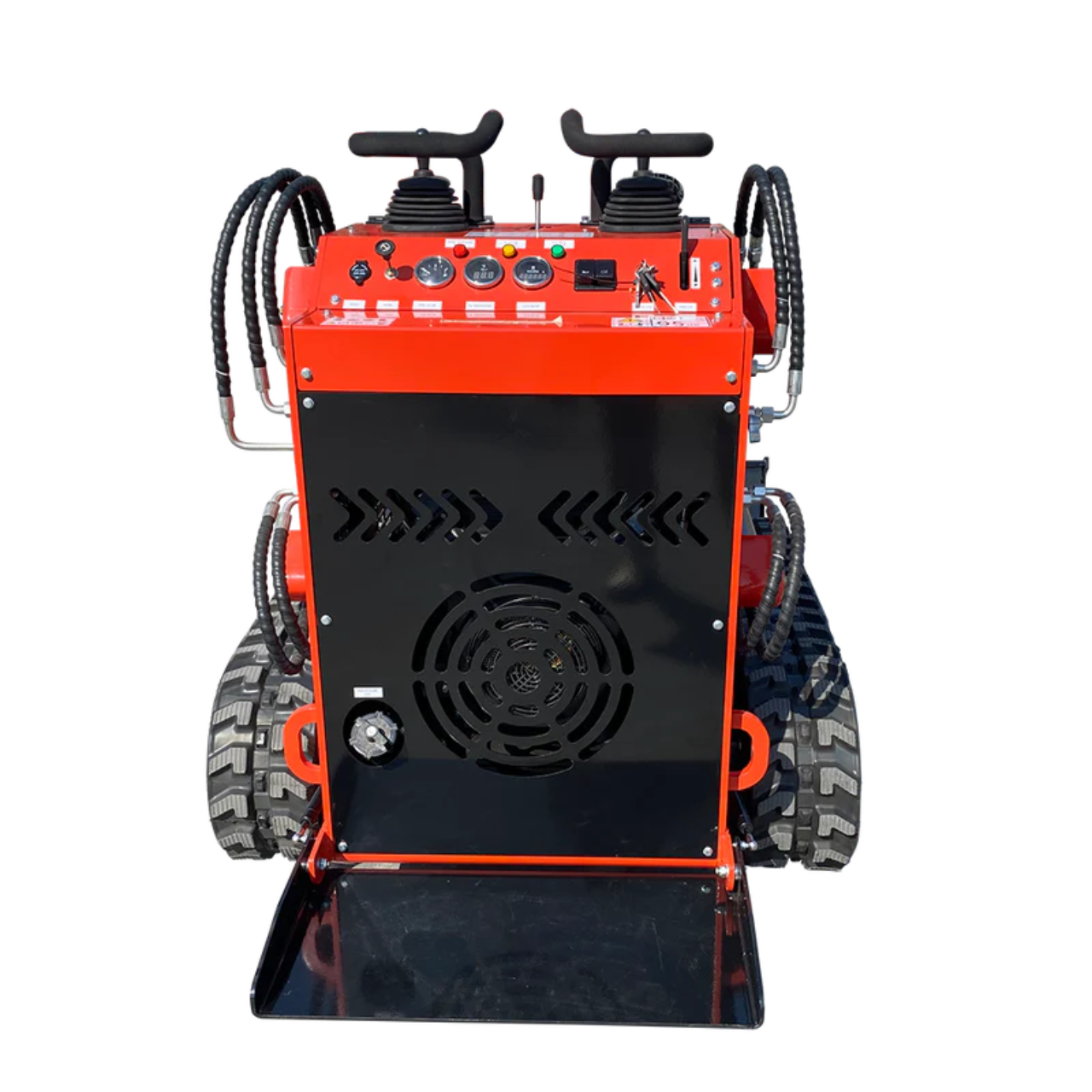

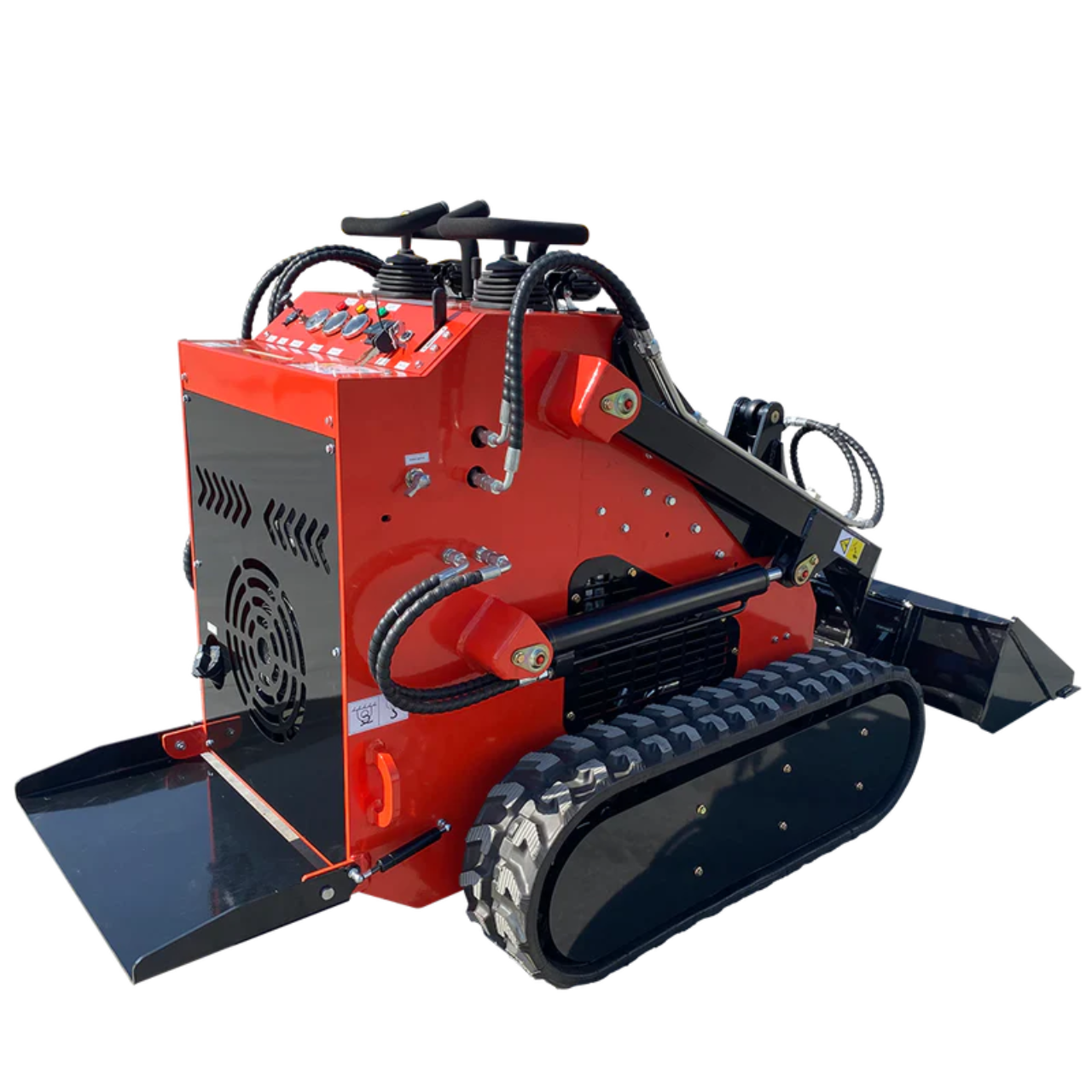

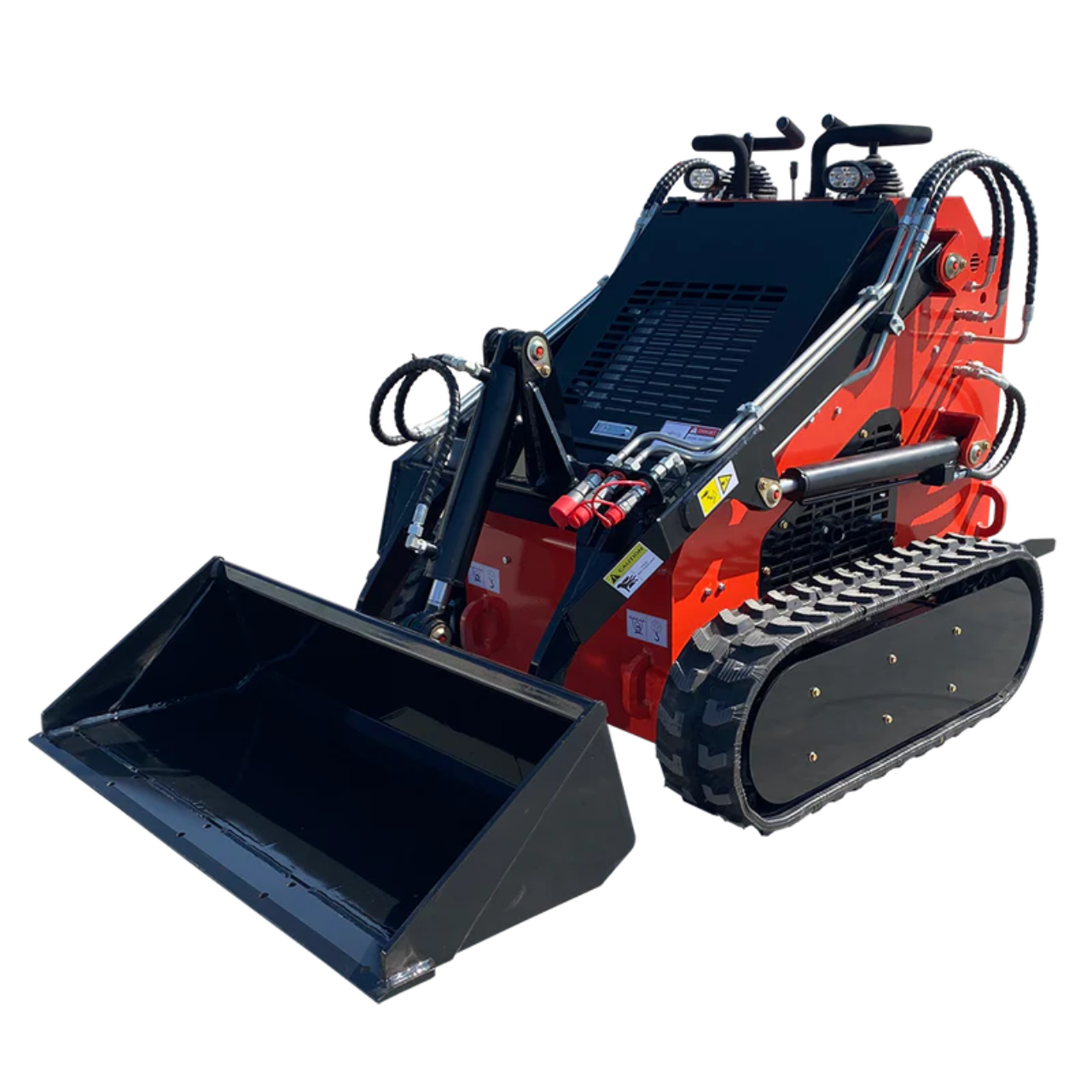

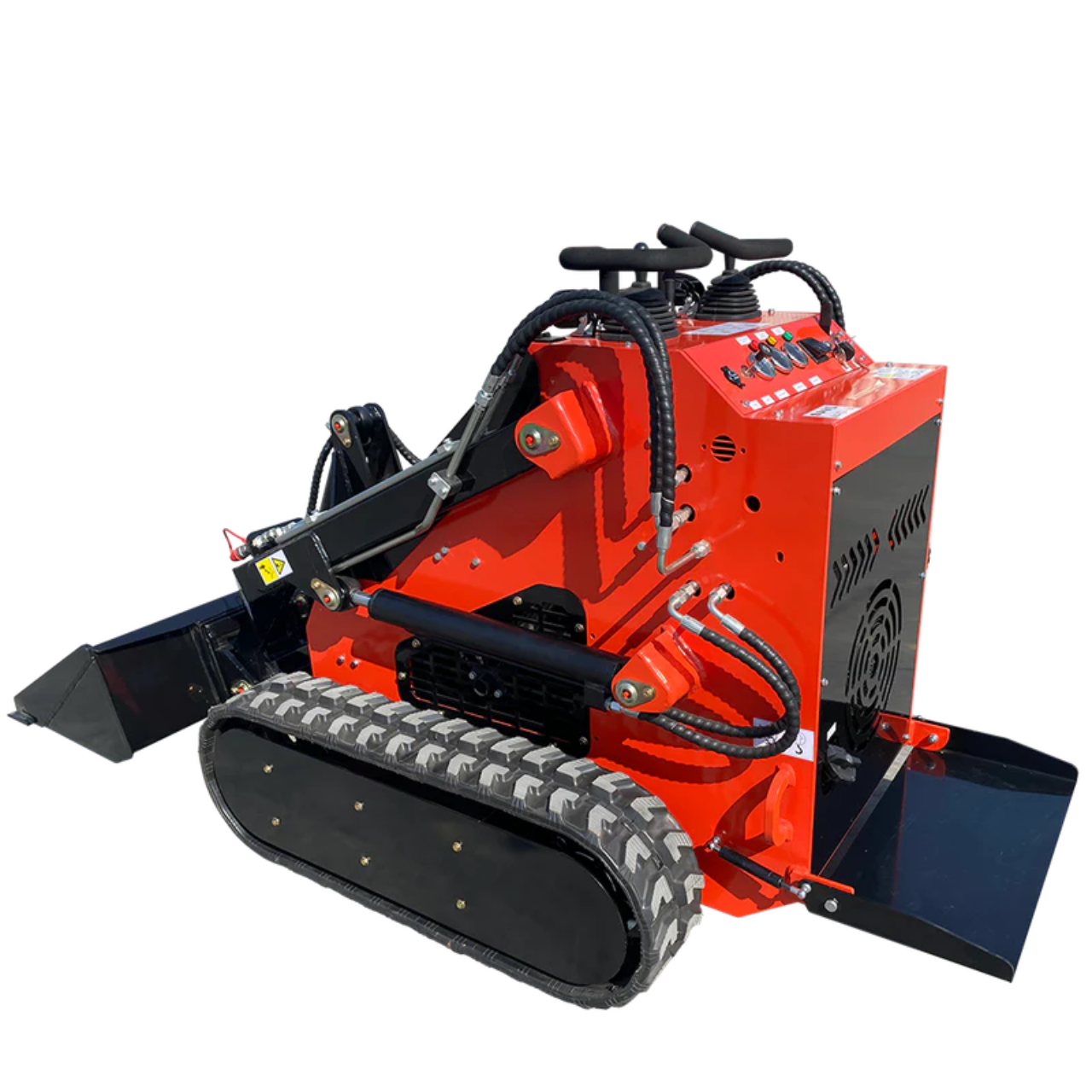

The CFG-LBT23 Mini Stand-On Skid Steer is a compact and versatile machine designed for efficient operation in tight spaces. With its powerful hydraulics and user-friendly controls, it handles tasks like digging, lifting, and landscaping with ease.
Technical Data:
- Operation Weight: 1 Ton
- Engine: B&S
Parameter
Performance
| Max.Load Capacity | 200 kg |
| Bucket Capacity | 0.15 m³ |
| Maximum Lift | 375 kg |
| Traveling Speed | 0-6 km/h |
| Rated Pressure | 17 Mpa |
| Lifting Time | 4.3 s |
| Descent Time | 3.3 s |
| Tipping Time | 1.5 s |
| Maximum Angle of the climb | 30° |
| Total Weight | 890 kg |
Engine parameter
| Engine | B&S 3864 engine |
| Engine type | gasoline, V-double cylinder |
| Output power | 17.1KW(23HP)/3600rpm |
| Fuel consumption | ≤6.7 L/h |
| Starting mode | Electric start |
Tank capacity
| Fuel Tank Capacity | 25L |
| Hydraulic Tank Capacity | 25L |
| Engine oil tank capacity | 1.7L |
DIMENSION
- Operating Weight: 0.9 Ton (1,800 lb)
- Overall Length: 2,285 mm (90 in)
- Overall Width: 1,090 mm (43 in)
- Overall Height: 1,270 mm (50 in)
- Bucket Width: 1,150 mm (45.3 in)
- Bucket Capacity: 0.12 m³ (0.15 yd³)
- Tracks Size: 180*72*37 (W*P*L)
WORKING RANGE
- Max Working Height: 2,100 mm (82.7 in)
- Max Unloading Height: 1,480 mm (58.3 in)
- Max Lifting Force: 220 kg (485 lb)
- Max Travel Speed: 6 km/h (3.7 mph)
ENGINE
- Brand / Model: Briggs & Stratton Vanguard 3864
- Fuel Type: Gasoline
- Max Power: 17 kW (23 HP)
- Displacement: 627 cc
- Fuel Tank: 6.6 L (1.7 gal)
- Hydraulic Flow Rate: 43.2 L/min (11.4 GPM)
- Hydraulic Pressure: 17 MPa (2,466 PSI)
- Hydraulic Tank Capacity: 25 L (6.6 gal)
